FLEXIBLE SHAFT
Features
◇By using piano wires coiled in an opposite direction this tube makes for a flexible rotating axle,able to transmit torque.
◇A hollow type is also available
◇This type does not uncoil by backlash from the process when stopped
Materials
◇Piano wire, hardened steel wire,stainless steel wire
Applications
◇Surgical drills
◇Equipment that requires flexible rotating connections
Standard Length and bending radi
◇Standard production length is approx. 5m
◇Approx. Min. bending R≤20 x Outer Diameter

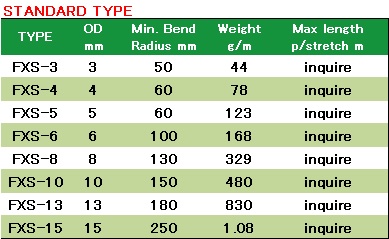

list
