SEMI-INTER LOCKED(DOUBLE)SPRING TUBE
Features
◇By inserting a stainless steel wire into the spiral valley of the semi-inter tube a greater bending radius limitation is achieved.
◇In addition the radius can be adjusted by modifying the wire diameter and number of wires inserted
◇Doubling the stainless steel wire will produce a stable outer tube diameter with increased stability
◇Almost none elasticity, which is an optimum protection for Optical Fibers,especially, for the quartz-and Hollow Fiber types
Materials
◇Tubing: Stainless steel, please inquire for other materials.
◇Sheathing: PVC, Olefin, Silicon,PUR
Applications
◇Excellent for limited bending radius
◇Dental and High power laser welding machines
Standard Length
◇Standard production length is approx. 20m

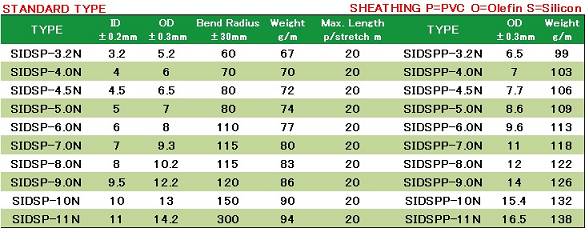

list
